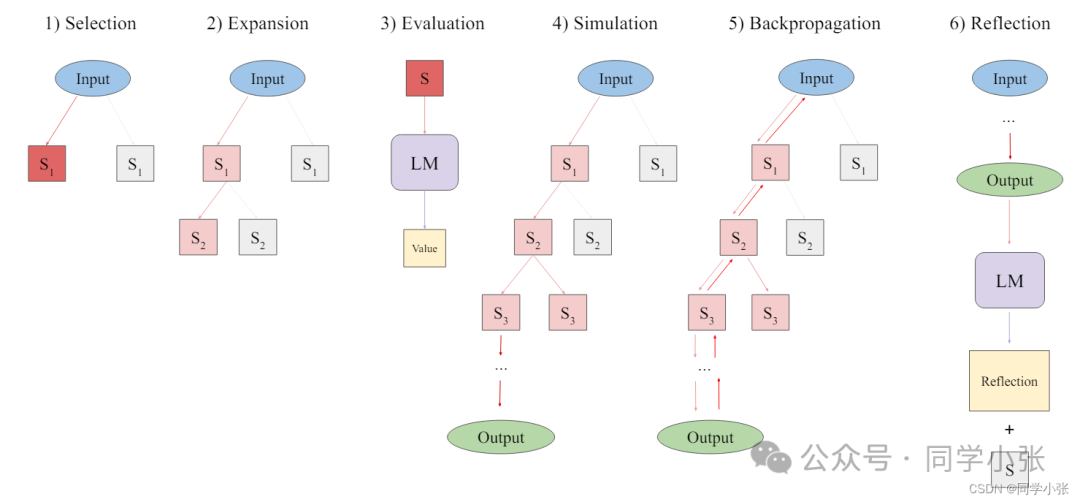

这是LATS论文中的步骤图：
LATS的实现需要：选择、扩展、评估、模拟、反向传播和反思的过程。

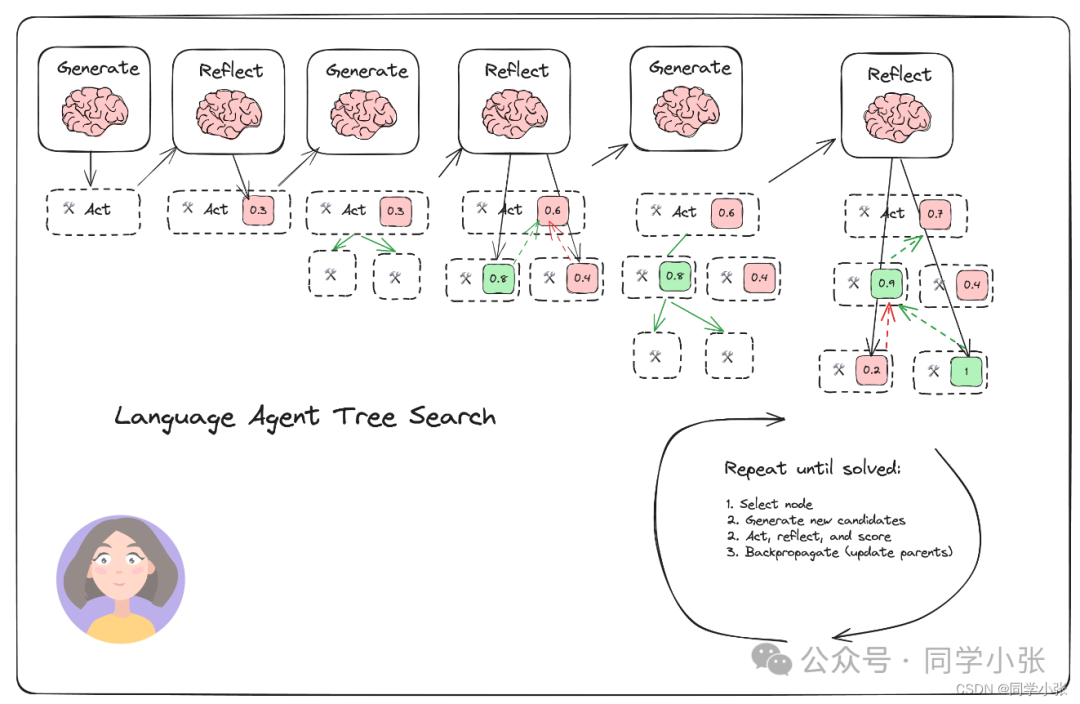

LangChain中的代码实现步骤如下：
将步骤简化为：
（1）选择
（2）扩展
（3）评估 + 反思 + 模拟 + 打分
（4）反向传播
1. 代码详解下面我们一起来看下它的源码实现。
完整代码参考：https://github.com/langchain-ai/langgraph/blob/main/examples/lats/lats.ipynb
1.1 LangGraph的创建
LangGraph的创建是一个非常标准的套路：
（1）创建LangGraph对象
builder = StateGraph(TreeState)
(2) 添加节点
builder.add_node("start", generate_initial_response)
builder.add_node("expand", expand)（3）设置初始进入节点
builder.set_entry_point("start")（4）添加边，都是条件边
builder.add_conditional_edges(
"start",
# Either expand/rollout or finish
should_loop,
)
builder.add_conditional_edges(
"expand",
# Either continue to rollout or finish
should_loop,
)（5）编译图
graph = builder.compile()

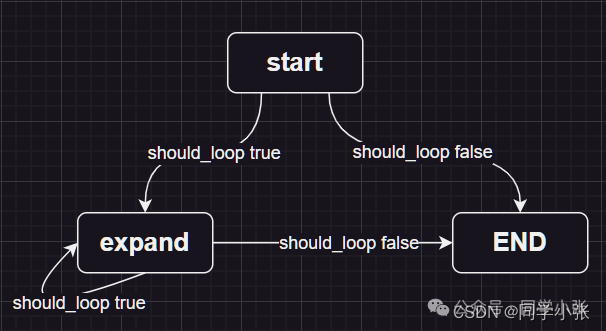

这就定义好了一个LangGraph，图的执行路径是这样的：
其中 should_loop 函数的定义：
def should_loop(state: TreeState):
"""Determine whether to continue the tree search."""
root = state["root"]
if root.is_solved:
return END
if root.height > 5:
return END
return "expand"如果判定已经得到了最终答案（is_solved），或者搜索的最大层数超过了5层，则停止搜索答案，不再继续搜索。否则继续执行 expand 节点。
有了这个LangGraph的框架，我总结的LangGraph创建需要的三要素：节点node、边edge和状态state：边edge上面已经定义了，下面看下节点node和状态state的实现。
1.2 状态state的实现
from typing_extensions import TypedDict
class TreeState(TypedDict):
# The full tree
root: Node
# The original input
input: str自定义的状态state为TreeState，里面有一个Node类型的root字段，和一个str类型的input字段。
1.3 节点node的实现
1.3.1 start节点
start节点是执行 generate_initial_response函数，构造根节点：
def generate_initial_response(state: TreeState) -> dict:
"""Generate the initial candidate response."""
res = initial_answer_chain.invoke({"input": state["input"]})
parsed = parser.invoke(res)
tool_responses = tool_executor.batch(
[ToolInvocation(tool=r["type"], tool_input=r["args"]) for r in parsed]
)
output_messages = [res] + [
ToolMessage(content=json.dumps(resp), tool_call_id=tool_call["id"])
for resp, tool_call in zip(tool_responses, parsed)
]
reflection = reflection_chain.invoke(
{"input": state["input"], "candidate": output_messages}
)
root = Node(output_messages, reflection=reflection)
return {
**state,
"root": root,
}1.3.1.1 初始化信息 initial_answer_chain
initial_answer_chain 代码如下：实现的功能是将用户提问输入给大模型，大模型给出回复。从Prompt看，基本就是个直来直去的问答。
prompt_template = ChatPromptTemplate.from_messages(
[
(
"system",
"You are an AI assistant.",
),
("user", "{input}"),
MessagesPlaceholder(variable_name="messages", optional=True),
]
)
initial_answer_chain = prompt_template | llm.bind_tools(tools=tools).with_config(
run_name="GenerateInitialCandidate"
)1.3.1.2 解析结果
回复之后，使用Json解析器解析一下：
parser = JsonOutputToolsParser(return_id=True)

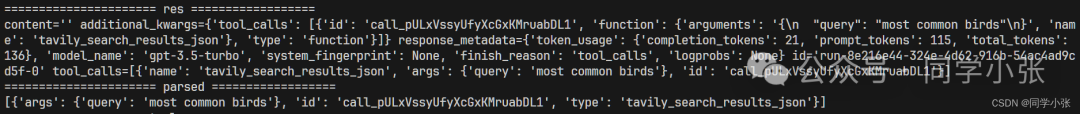

这两步的运行结果大体如下：
1.3.1.3 执行工具获取执行工具结果 tool_executor
tool_executor 将上一步解析出来的工具进行并行执行，并获取结果。下面是工具的定义：
search = TavilySearchAPIWrapper()
tavily_tool = TavilySearchResults(api_wrapper=search, max_results=5)
tools = [tavily_tool]

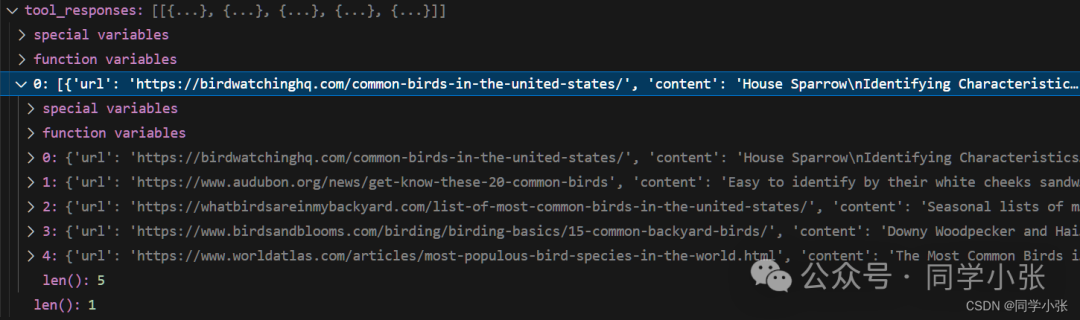

tool_executor = ToolExecutor(tools=tools)执行完工具后结果类似如下：
1.3.1.4 评估反思 reflection_chain
reflection_chain 用来对工具执行结果进行打分评估。
@as_runnable
def reflection_chain(inputs) -> Reflection:
tool_choices = reflection_llm_chain.invoke(inputs)
reflection = tool_choices[0]
if not isinstance(inputs["candidate"][-1], AIMessage):
reflection.found_solution = False
return reflection其中的 reflection_llm_chain 定义如下：
prompt = ChatPromptTemplate.from_messages(
[
(
"system",
"Reflect and grade the assistant response to the user question below.",
),
("user", "{input}"),
MessagesPlaceholder(variable_name="candidate"),
]
)
reflection_llm_chain = (
prompt
| llm.bind_tools(tools=[Reflection], tool_choice="Reflection").with_config(
run_name="Reflection"
)
| PydanticToolsParser(tools=[Reflection])
)从Prompt就大体能看出来，是利用大模型进行反思和打分。输入是用户的原始问题和候选的节点candidate。tool_choice="Reflection"强制让大模型使用 Reflection工具，最后将大模型返回结果使用 Reflection进行解析。
最终，该chain返回的结果是一个 Reflection实例。
Reflection 执行结果示例：包括一个说明、一个评分和是否是最终答案。参考 Reflection类的实现。
1.3.1.5 Reflection类
class Reflection(BaseModel):
reflections: str = Field(
description="The critique and reflections on the sufficiency, superfluency,"
" and general quality of the response"
)
score: int = Field(
description="Score from 0-10 on the quality of the candidate response.",
gte=0,
lte=10,
)
found_solution: bool = Field(
description="Whether the response has fully solved the question or task."
)
def as_message(self):
return HumanMessage(
content=f"Reasoning: {self.reflections}\nScore: {self.score}"
)
@property
def normalized_score(self) -> float:
return self.score / 10.0问题：这个Reflection类没有定义为tools，为什么能直接这样写：
tools=[Reflection]？
1.3.2 expand节点
这个节点执行的就是整个LATS的流程：选择、扩展、评估、模拟、反向传播和反思。
def expand(state: TreeState, config: RunnableConfig) -> dict:
"""Starting from the "best" node in the tree, generate N candidates for the next step."""
root = state["root"]
best_candidate: Node = root.best_child if root.children else root
messages = best_candidate.get_trajectory()
# Generate N candidates from the single child candidate
new_candidates = expansion_chain.invoke(
{"input": state["input"], "messages": messages}, config
)
parsed = parser.batch(new_candidates)
flattened = [
(i, tool_call)
for i, tool_calls in enumerate(parsed)
for tool_call in tool_calls
]
tool_responses = tool_executor.batch(
[
ToolInvocation(tool=tool_call["type"], tool_input=tool_call["args"])
for _, tool_call in flattened
]
)
collected_responses = defaultdict(list)
for (i, tool_call), resp in zip(flattened, tool_responses):
collected_responses[i].append(
ToolMessage(content=json.dumps(resp), tool_call_id=tool_call["id"])
)
output_messages = []
for i, candidate in enumerate(new_candidates):
output_messages.append([candidate] + collected_responses[i])
# Reflect on each candidate
# For tasks with external validation, you'd add that here.
reflections = reflection_chain.batch(
[{"input": state["input"], "candidate": msges} for msges in output_messages],
config,
)
# Grow tree
child_nodes = [
Node(cand, parent=best_candidate, reflection=reflection)
for cand, reflection in zip(output_messages, reflections)
]
best_candidate.children.extend(child_nodes)
# We have already extended the tree directly, so we just return the state
return state1.3.2.1 选择 best_candidate
选择当前最优的节点。
以下代码从 best_child开始看，首先是获取树的全部节点和子孙节点。取分数最高的节点。
怎么取分数最高的节点？这里调用了 upper_confidence_bound函数。这个函数用来计算UCT分数，UCT 是一种常用于多臂赌博机问题（Multi-Armed Bandit Problem）和蒙特卡洛树搜索（Monte Carlo Tree Search, MCTS）的算法，它有助于在探索（exploration）和利用（exploitation）之间找到一个平衡。
def upper_confidence_bound(self, exploration_weight=1.0):
"""Return the UCT score. This helps balance exploration vs. exploitation of a branch."""
if self.parent is None:
raise ValueError("Cannot obtain UCT from root node")
if self.visits == 0:
return self.value
# Encourages exploitation of high-value trajectories
average_reward = self.value / self.visits
# Encourages exploration of less-visited trajectories
exploration_term = math.sqrt(math.log(self.parent.visits) / self.visits)
return average_reward + exploration_weight * exploration_term
@property
def best_child(self):
"""Select the child with the highest UCT to search next."""
if not self.children:
return None
all_nodes = self._get_all_children()
return max(all_nodes, key=lambda child: child.upper_confidence_bound())1.3.2.2 扩展 expansion_chain
这一步是利用大模型，对于单个输入，生成N个不同的输出。prompt_template与前面初始化节点中的一致，基本是直来直去的问答，只是一次生成多个结果。
# This generates N candidate values for a single input to sample actions from the environment
def generate_candidates(messages: ChatPromptValue, config: RunnableConfig):
n = config["configurable"].get("N", 5)
bound_kwargs = llm.bind_tools(tools=tools).kwargs
chat_result = llm.generate(
[messages.to_messages()],
n=n,
callbacks=config["callbacks"],
run_name="GenerateCandidates",
**bound_kwargs
)
return [gen.message for gen in chat_result.generations[0]]
expansion_chain = prompt_template | generate_candidates候选节点生成结果示例：
[AIMessage(content='', additional_kwargs={'tool_calls': [{'id': 'call_5DMq9O6BIden7lLraFH0NuYZ', 'function': {'arguments': '{"query":"lithium pollution research report"}', 'name': 'tavily_search_results_json'}, 'type': 'function'}]}),
AIMessage(content='', additional_kwargs={'tool_calls': [{'id': 'call_5DMq9O6BIden7lLraFH0NuYZ', 'function': {'arguments': '{"query":"lithium pollution research report"}', 'name': 'tavily_search_results_json'}, 'type': 'function'}]}),
AIMessage(content='', additional_kwargs={'tool_calls': [{'id': 'call_5DMq9O6BIden7lLraFH0NuYZ', 'function': {'arguments': '{"query":"lithium pollution research report"}', 'name': 'tavily_search_results_json'}, 'type': 'function'}]}),
AIMessage(content='', additional_kwargs={'tool_calls': [{'id': 'call_5DMq9O6BIden7lLraFH0NuYZ', 'function': {'arguments': '{"query":"lithium pollution research report"}', 'name': 'tavily_search_results_json'}, 'type': 'function'}]}),
AIMessage(content='', additional_kwargs={'tool_calls': [{'id': 'call_5DMq9O6BIden7lLraFH0NuYZ', 'function': {'arguments': '{"query":"lithium pollution research report"}', 'name': 'tavily_search_results_json'}, 'type': 'function'}]})]生成完N个候选节点之后，通过 解析结果、并行执行工具得到每个节点执行的结果。
1.3.2.3 评估+反思
对每个候选节点进行评估反思 reflection_chain
1.3.2.4 扩展树和反向传播
将新增的节点添加到树中
# Grow tree
child_nodes = [
Node(cand, parent=best_candidate, reflection=reflection)
for cand, reflection in zip(output_messages, reflections)
]

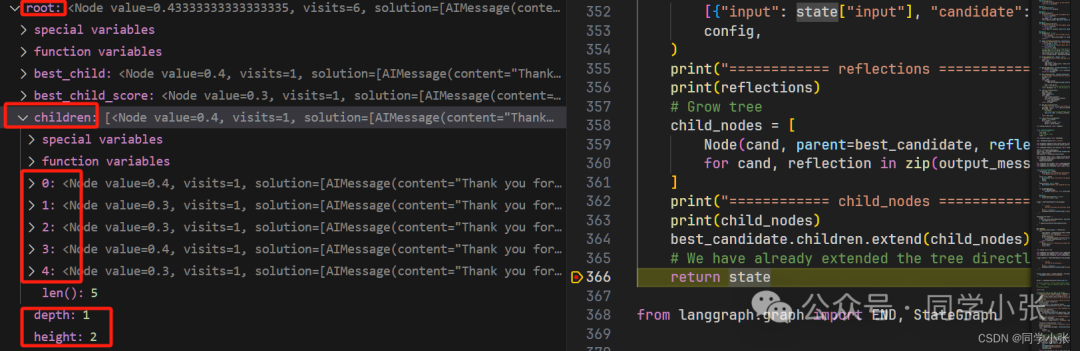

best_candidate.children.extend(child_nodes)添加之后，树中已经有了这些子节点：
值得注意的是，这里面也包含了反向传播步骤。当新创建一个Node实例时，会调用反向传播：
class Node:
def __init__(
self,
messages: List[BaseMessage],
reflection: Reflection,
parent: Optional[Node] = None,
):
......
self.backpropagate(reflection.normalized_score)反向传播的实际作用，就是更新这条路径上各个节点的分数：
def backpropagate(self, reward: float):
"""Update the score of this node and its parents."""
node = self
while node:
node.visits += 1
node.value = (node.value * (node.visits - 1) + reward) / node.visits
node = node.parent1.4 执行
question = "Write a research report on lithium pollution."
for step in graph.stream({"input": question}):
step_name, step_state = next(iter(step.items()))
print(step_name)
print("rolled out: ", step_state["root"].height)
print("---")
# solution_node = step["__end__"]["root"].get_best_solution() ## 这一句我没运行成功，暂且不管吧
solution_node = step["start"]["root"].get_best_solution()
best_trajectory = solution_node.get_trajectory(include_reflections=False)
print(best_trajectory[-1].content)执行完之后最后输出结果是：最终节点的content。
best_trajectory = solution_node.get_trajectory(include_reflections=False)

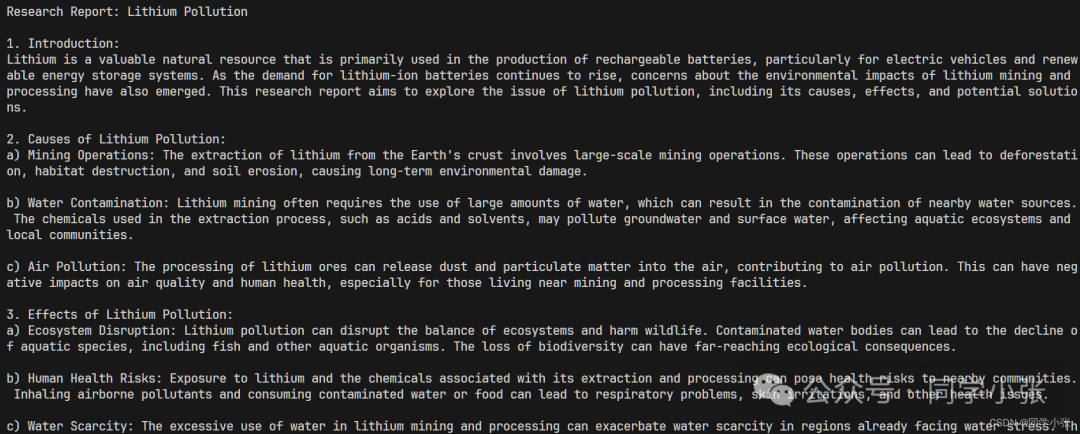

print(best_trajectory[-1].content)最终输出结果示例：
本文我们对LangChain中实现LATS的源码进行了详细的学习和拆解，希望能够帮助大家更好地理解LATS，给大家做一个参考。
LATS的六步：选择、扩展、评估、模拟、反向传播和反思。其中评估、模拟和反思可以合并在一起执行，模拟其实就是执行工具获取工具的执行结果，反向传播其实就是更新这条路径上各个节点的得分。
