RAG优化策略：语义切块

!pip install -qU langchain_experimental langchain_openai langchain_community langchain ragas chromadb langchain-groq fastembed pypdf openai

langchain==0.1.16
langchain-community==0.0.34
langchain-core==0.1.45
langchain-experimental==0.0.57
langchain-groq==0.1.2
langchain-openai==0.1.3
langchain-text-splitters==0.0.1
langcodes==3.3.0
langsmith==0.1.49
chromadb==0.4.24
ragas==0.1.7
fastembed==0.2.6

! wget "https://arxiv.org/pdf/1810.04805.pdf"

from langchain.document_loaders import PyPDFLoaderfrom langchain.text_splitter import RecursiveCharacterTextSplitter#loader = PyPDFLoader("1810.04805.pdf")documents = loader.load()#print(len(documents))

from langchain.text_splitter import RecursiveCharacterTextSplitter
text_splitter = RecursiveCharacterTextSplitter(    chunk_size=1000,    chunk_overlap=0,    length_function=len,    is_separator_regex=False)#naive_chunks = text_splitter.split_documents(documents)for chunk in naive_chunks[10:15]:  print(chunk.page_content+ "\n")
###########################RESPONSE###############################BERT BERT E[CLS] E1 E[SEP] ... ENE1’... EM’CT1T[SEP] ... TNT1’... TM’[CLS] Tok 1 [SEP] ... Tok NTok 1 ... TokM Question Paragraph Start/End Span BERT E[CLS] E1 E[SEP] ... ENE1’... EM’CT1T[SEP] ... TNT1’... TM’[CLS] Tok 1 [SEP] ... Tok NTok 1 ... TokM Masked Sentence A Masked Sentence B Pre-training Fine-Tuning NSP Mask LM Mask LM Unlabeled Sentence A and B Pair SQuAD Question Answer Pair NER MNLI Figure 1: Overall pre-training and fine-tuning procedures for BERT. Apart from output layers, the same architec-tures are used in both pre-training and fine-tuning. The same pre-trained model parameters are used to initializemodels for different down-stream tasks. During fine-tuning, all parameters are fine-tuned. [CLS] is a specialsymbol added in front of every input example, and [SEP] is a special separator token (e.g. separating ques-tions/answers).ing and auto-encoder objectives have been usedfor pre-training such models (Howard and Ruder,
2018; Radford et al., 2018; Dai and Le, 2015).2.3 Transfer Learning from Supervised DataThere has also been work showing effective trans-fer from supervised tasks with large datasets, suchas natural language inference (Conneau et al.,2017) and machine translation (McCann et al.,2017). Computer vision research has also demon-strated the importance of transfer learning fromlarge pre-trained models, where an effective recipeis to fine-tune models pre-trained with Ima-geNet (Deng et al., 2009; Yosinski et al., 2014).3 BERTWe introduce BERT and its detailed implementa-tion in this section. There are two steps in ourframework: pre-training and fine-tuning . Dur-ing pre-training, the model is trained on unlabeleddata over different pre-training tasks. For fine-tuning, the BERT model is first initialized withthe pre-trained parameters, and all of the param-eters are fine-tuned using labeled data from thedownstream tasks. Each downstream task has sep-
arate fine-tuned models, even though they are ini-tialized with the same pre-trained parameters. Thequestion-answering example in Figure 1 will serveas a running example for this section.A distinctive feature of BERT is its unified ar-chitecture across different tasks. There is mini-mal difference between the pre-trained architec-ture and the final downstream architecture.Model Architecture BERT’s model architec-ture is a multi-layer bidirectional Transformer en-coder based on the original implementation de-scribed in Vaswani et al. (2017) and released inthetensor2tensor library.1Because the useof Transformers has become common and our im-plementation is almost identical to the original,we will omit an exhaustive background descrip-tion of the model architecture and refer readers toVaswani et al. (2017) as well as excellent guidessuch as “The Annotated Transformer.”2In this work, we denote the number of layers(i.e., Transformer blocks) as L, the hidden size as
H, and the number of self-attention heads as A.3We primarily report results on two model sizes:BERT BASE (L=12, H=768, A=12, Total Param-eters=110M) and BERT LARGE (L=24, H=1024,A=16, Total Parameters=340M).BERT BASE was chosen to have the same modelsize as OpenAI GPT for comparison purposes.Critically, however, the BERT Transformer usesbidirectional self-attention, while the GPT Trans-former uses constrained self-attention where everytoken can only attend to context to its left.41https://github.com/tensorflow/tensor2tensor2http://nlp.seas.harvard.edu/2018/04/03/attention.html3In all cases we set the feed-forward/filter size to be 4H,i.e., 3072 for the H= 768 and 4096 for the H= 1024 .4We note that in the literature the bidirectional Trans-
Input/Output Representations To make BERThandle a variety of down-stream tasks, our inputrepresentation is able to unambiguously representboth a single sentence and a pair of sentences(e.g.,⟨Question, Answer⟩) in one token sequence.Throughout this work, a “sentence” can be an arbi-trary span of contiguous text, rather than an actuallinguistic sentence. A “sequence” refers to the in-put token sequence to BERT, which may be a sin-gle sentence or two sentences packed together.We use WordPiece embeddings (Wu et al.,2016) with a 30,000 token vocabulary. The firsttoken of every sequence is always a special clas-sification token ( [CLS] ). The final hidden statecorresponding to this token is used as the ag-gregate sequence representation for classificationtasks. Sentence pairs are packed together into asingle sequence. We differentiate the sentences intwo ways. First, we separate them with a specialtoken ( [SEP] ). Second, we add a learned embed-Instantiate Embedding Model
from langchain_community.embeddings.fastembed import FastEmbedEmbeddingsembed_model = FastEmbedEmbeddings(model_name="BAAI/bge-base-en-v1.5")

from google.colab import userdatafrom groq import Groqfrom langchain_groq import ChatGroq#groq_api_key = userdata.get("GROQ_API_KEY")

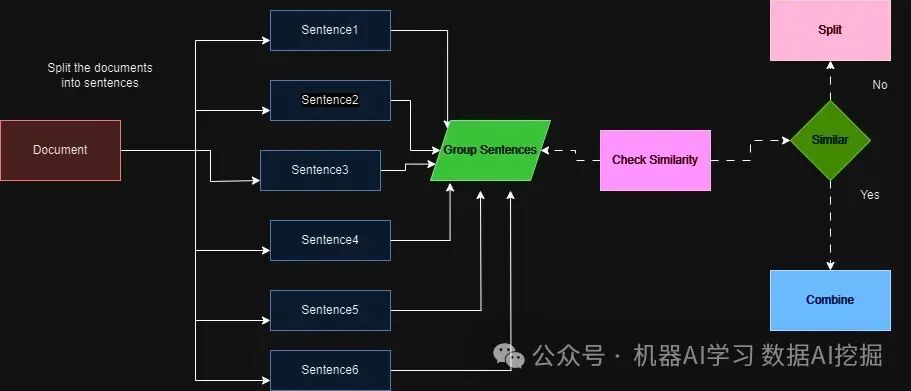

from langchain_experimental.text_splitter import SemanticChunkerfrom langchain_openai.embeddings import OpenAIEmbeddings
semantic_chunker = SemanticChunker(embed_model, breakpoint_threshold_type="percentile")#semantic_chunks = semantic_chunker.create_documents([d.page_content for d in documents])#for semantic_chunk in semantic_chunks:  if "Effect of Pre-training Tasks" in semantic_chunk.page_content:    print(semantic_chunk.page_content)    print(len(semantic_chunk.page_content))

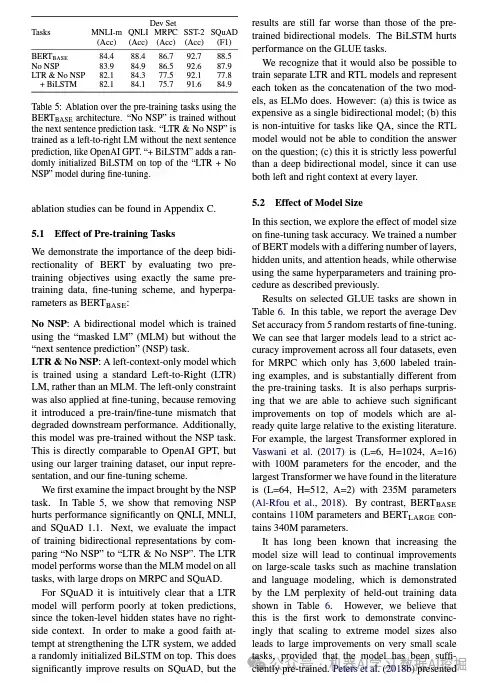

#############################RESPONSE###############################Dev SetTasks MNLI-m QNLI MRPC SST-2 SQuAD(Acc) (Acc) (Acc) (Acc) (F1)BERT BASE 84.4 88.4 86.7 92.7 88.5No NSP 83.9 84.9 86.5 92.6 87.9LTR & No NSP 82.1 84.3 77.5 92.1 77.8+ BiLSTM 82.1 84.1 75.7 91.6 84.9Table 5: Ablation over the pre-training tasks using theBERT BASE architecture. “No NSP” is trained withoutthe next sentence prediction task. “LTR & No NSP” istrained as a left-to-right LM without the next sentenceprediction, like OpenAI GPT. “+ BiLSTM” adds a ran-domly initialized BiLSTM on top of the “LTR + NoNSP” model during fine-tuning. ablation studies can be found in Appendix C. 5.1 Effect of Pre-training TasksWe demonstrate the importance of the deep bidi-rectionality of BERT by evaluating two pre-training objectives using exactly the same pre-training data, fine-tuning scheme, and hyperpa-rameters as BERT BASE :No NSP : A bidirectional model which is trainedusing the “masked LM” (MLM) but without the“next sentence prediction” (NSP) task. LTR & No NSP : A left-context-only model whichis trained using a standard Left-to-Right (LTR)LM,

from langchain_community.vectorstores import Chromasemantic_chunk_vectorstore = Chroma.from_documents(semantic_chunks, embedding=embed_model)

semantic_chunk_retriever = semantic_chunk_vectorstore.as_retriever(search_kwargs={"k" : 1})semantic_chunk_retriever.invoke("Describe the Feature-based Approach with BERT?")
########################RESPONSE###################################[Document(page_content='The right part of the paper represents the\nDev set results. For the feature-based approach,\nwe concatenate the last 4 layers of BERT as the\nfeatures, which was shown to be the best approach\nin Section 5.3. From the table it can be seen that fine-tuning is\nsurprisingly robust to different masking strategies. However, as expected, using only the M ASK strat-\negy was problematic when applying the feature-\nbased approach to NER. Interestingly, using only\nthe R NDstrategy performs much worse than our\nstrategy as well.')]

from langchain_core.prompts import ChatPromptTemplate
rag_template = """\Use the following context to answer the user's query. If you cannot answer, please respond with 'I don't know'.
User's Query:{question}
Context:{context}"""
rag_prompt = ChatPromptTemplate.from_template(rag_template)

chat_model = ChatGroq(temperature=0,                      model_name="mixtral-8x7b-32768",                      api_key=userdata.get("GROQ_API_KEY"),)

from langchain_core.runnables import RunnablePassthroughfrom langchain_core.output_parsers import StrOutputParser
semantic_rag_chain = (    {"context" : semantic_chunk_retriever, "question" : RunnablePassthrough()}    | rag_prompt    | chat_model    | StrOutputParser())

semantic_rag_chain.invoke("Describe the Feature-based Approach with BERT?")
################ RESPONSE ###################################The feature-based approach with BERT, as mentioned in the context, involves using BERT as a feature extractor for a downstream natural language processing task, specifically Named Entity Recognition (NER) in this case.
To use BERT in a feature-based approach, the last 4 layers of BERT are concatenated to serve as the features for the task. This was found to be the most effective approach in Section 5.3 of the paper.
The context also mentions that fine-tuning BERT is surprisingly robust to different masking strategies. However, when using the feature-based approach for NER, using only the MASK strategy was problematic. Additionally, using only the RND strategy performed much worse than the proposed strategy.
In summary, the feature-based approach with BERT involves using the last 4 layers of BERT as features for a downstream NLP task, and fine-tuning these features for the specific task. The approach was found to be robust to different masking strategies, but using only certain strategies was problematic for NER.

semantic_rag_chain.invoke("What is SQuADv2.0?")################ RESPONSE ###################################SQuAD v2.0, or Squad Two Point Zero, is a version of the Stanford Question Answering Dataset (SQuAD) that extends the problem definition of SQuAD 1.1 by allowing for the possibility that no short answer exists in the provided paragraph. This makes the problem more realistic, as not all questions have a straightforward answer within the provided text. The SQuAD 2.0 task uses a simple approach to extend the SQuAD 1.1 BERT model for this task, by treating questions that do not have an answer as having an answer span with start and end at the [CLS] token, and comparing the score of the no-answer span to the score of the best non-null span for prediction. The document also mentions that the BERT ensemble, which is a combination of 7 different systems using different pre-training checkpoints and fine-tuning seeds, outperforms all existing systems by a wide margin in SQuAD 2.0, even when excluding entries that use BERT as one of their components.

semantic_rag_chain.invoke("What is the purpose of Ablation Studies?")################ RESPONSE ###################################Ablation studies are used to understand the impact of different components or settings of a machine learning model on its performance. In the provided context, ablation studies are used to answer questions about the effect of the number of training steps and masking procedures on the performance of the BERT model. By comparing the performance of the model under different conditions, researchers can gain insights into the importance of these components or settings and how they contribute to the overall performance of the model.

naive_chunk_vectorstore = Chroma.from_documents(naive_chunks, embedding=embed_model)naive_chunk_retriever = naive_chunk_vectorstore.as_retriever(search_kwargs={"k" : 5})naive_rag_chain = (    {"context" : naive_chunk_retriever, "question" : RunnablePassthrough()}    | rag_prompt    | chat_model    | StrOutputParser())

naive_rag_chain.invoke("Describe the Feature-based Approach with BERT?")
#############################RESPONSE##########################The Feature-based Approach with BERT involves extracting fixed features from the pre-trained BERT model, as opposed to the fine-tuning approach where all parameters are jointly fine-tuned on a downstream task. The feature-based approach has certain advantages, such as being applicable to tasks that cannot be easily represented by a Transformer encoder architecture, and providing major computational benefits by pre-computing an expensive representation of the training data once and then running many experiments with cheaper models on top of this representation. In the context provided, the feature-based approach is compared to the fine-tuning approach on the CoNLL-2003 Named Entity Recognition (NER) task, with the feature-based approach using a case-preserving WordPiece model and including the maximal document context provided by the data. The results presented in Table 7 show the performance of both approaches on the NER task.

naive_rag_chain.invoke("What is SQuADv2.0?")#############################RESPONSE##########################SQuAD v2.0, or the Stanford Question Answering Dataset version 2.0, is a collection of question/answer pairs that extends the SQuAD v1.1 problem definition by allowing for the possibility that no short answer exists in the provided paragraph. This makes the problem more realistic. The SQuAD v2.0 BERT model is extended from the SQuAD v1.1 model by treating questions that do not have an answer as having an answer span with start and end at the [CLS] token, and extending the probability space for the start and end answer span positions to include the position of the [CLS] token. For prediction, the score of the no-answer span is compared to the score of the best non-null span.

naive_rag_chain.invoke("What is the purpose of Ablation Studies?")
#############################RESPONSE##########################Ablation studies are used to evaluate the effect of different components or settings in a machine learning model. In the provided context, ablation studies are used to understand the impact of certain aspects of the BERT model, such as the number of training steps and masking procedures, on the model's performance.
For instance, one ablation study investigates the effect of the number of training steps on BERT's performance. The results show that BERT BASE achieves higher fine-tuning accuracy on MNLI when trained for 1M steps compared to 500k steps, indicating that a larger number of training steps contributes to better performance.
Another ablation study focuses on different masking procedures during pre-training. The study compares BERT's masked language model (MLM) with a left-to-right strategy. The results demonstrate that the masking strategies aim to reduce the mismatch between pre-training and fine-tuning, as the [MASK] symbol does not appear during the fine-tuning stage. The study also reports Dev set results for both MNLI and Named Entity Recognition (NER) tasks, considering fine-tuning and feature-based approaches for NER.

synthetic_data_splitter = RecursiveCharacterTextSplitter(    chunk_size=1000,    chunk_overlap=0,    length_function=len,    is_separator_regex=False)#synthetic_data_chunks = synthetic_data_splitter.create_documents([d.page_content for d in documents])print(len(synthetic_data_chunks))

questions = []ground_truths_semantic = []contexts = []answers = []
question_prompt = """\You are a teacher preparing a test. Please create a question that can be answered by referencing the following context.
Context:{context}"""
question_prompt = ChatPromptTemplate.from_template(question_prompt)
ground_truth_prompt = """\Use the following context and question to answer this question using *only* the provided context.
Question:{question}
Context:{context}"""
ground_truth_prompt = ChatPromptTemplate.from_template(ground_truth_prompt)
question_chain = question_prompt | chat_model | StrOutputParser()ground_truth_chain = ground_truth_prompt | chat_model | StrOutputParser()
for chunk in synthetic_data_chunks[10:20]:  questions.append(question_chain.invoke({"context" : chunk.page_content}))  contexts.append([chunk.page_content])  ground_truths_semantic.append(ground_truth_chain.invoke({"question" : questions[-1], "context" : contexts[-1]}))  answers.append(semantic_rag_chain.invoke(questions[-1]))

from datasets import load_dataset, Dataset
qagc_list = []
for question, answer, context, ground_truth in zip(questions, answers, contexts, ground_truths_semantic):  qagc_list.append({      "question" : question,      "answer" : answer,      "contexts" : context,      "ground_truth" : ground_truth  })
eval_dataset = Dataset.from_list(qagc_list)eval_dataset
###########################RESPONSE###########################Dataset({    features: ['question', 'answer', 'contexts', 'ground_truth'],    num_rows: 10})

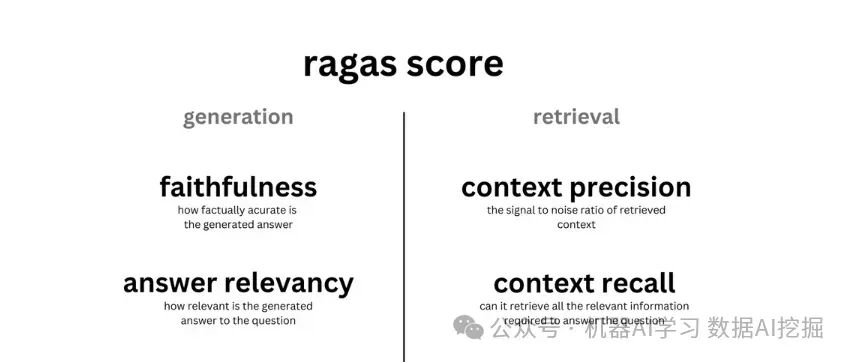

from ragas.metrics import (    answer_relevancy,    faithfulness,    context_recall,    context_precision,)
#from ragas import evaluate
result = evaluate(    eval_dataset,    metrics=[        context_precision,        faithfulness,        answer_relevancy,        context_recall,    ],     llm=chat_model,     embeddings=embed_model,    raise_exceptions=False)

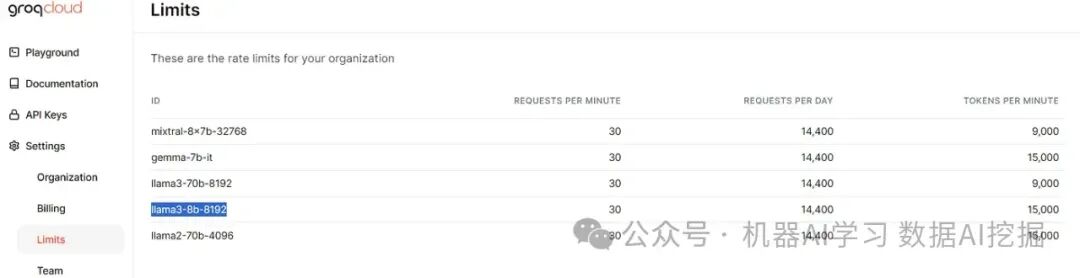

groq.RateLimitError: Error code: 429 - {'error': {'message': 'Rate limit reached for model `mixtral-8x7b-32768` in organization `org_01htsyxttnebyt0av6tmfn1fy6` on tokens per minute (TPM): Limit 4500, Used 3867, Requested ~1679. Please try again in 13.940333333s. Visit https://console.groq.com/docs/rate-limits for more information.', 'type': 'tokens', 'code': 'rate_limit_exceeded'}}

import osfrom google.colab import userdataimport openaios.environ['OPENAI_API_KEY'] = userdata.get('OPENAI_API_KEY')openai.api_key = os.environ['OPENAI_API_KEY']

from ragas import evaluate
result = evaluate(    eval_dataset,    metrics=[        context_precision,        faithfulness,        answer_relevancy,        context_recall,    ],)result
#########################RESPONSE##########################{'context_precision': 1.0000, 'faithfulness': 0.8857, 'answer_relevancy': 0.9172, 'context_recall': 1.0000}

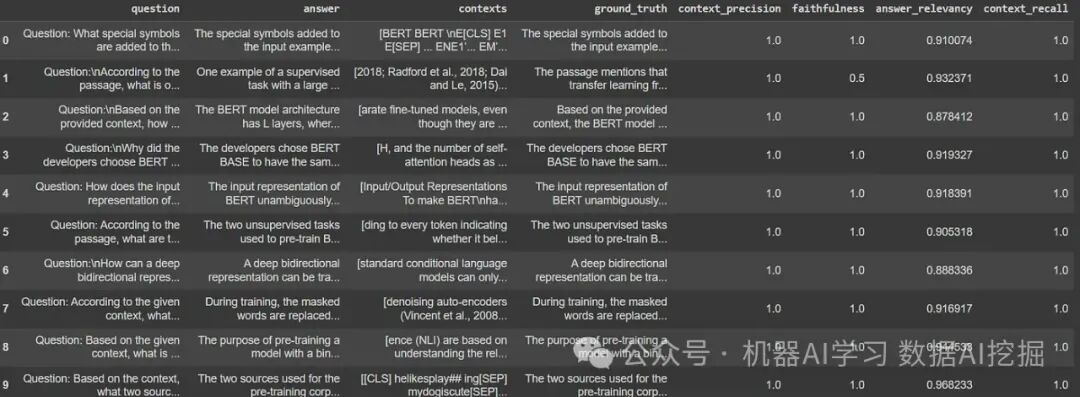

#Extract the details into a dataframeresults_df = result.to_pandas()results_df

import tqdmquestions = []ground_truths_semantic = []contexts = []answers = []for chunk in tqdm.tqdm(synthetic_data_chunks[10:20]):  questions.append(question_chain.invoke({"context" : chunk.page_content}))  contexts.append([chunk.page_content])  ground_truths_semantic.append(ground_truth_chain.invoke({"question" : questions[-1], "context" : contexts[-1]}))  answers.append(naive_rag_chain.invoke(questions[-1]))

qagc_list = []
for question, answer, context, ground_truth in zip(questions, answers, contexts, ground_truths_semantic):  qagc_list.append({      "question" : question,      "answer" : answer,      "contexts" : context,      "ground_truth" : ground_truth  })
naive_eval_dataset = Dataset.from_list(qagc_list)naive_eval_dataset
############################RESPONSE########################Dataset({    features: ['question', 'answer', 'contexts', 'ground_truth'],    num_rows: 10})

naive_result = evaluate(    naive_eval_dataset,    metrics=[        context_precision,        faithfulness,        answer_relevancy,        context_recall,    ],)#naive_result############################RESPONSE#######################{'context_precision': 1.0000, 'faithfulness': 0.9500, 'answer_relevancy': 0.9182, 'context_recall': 1.0000}

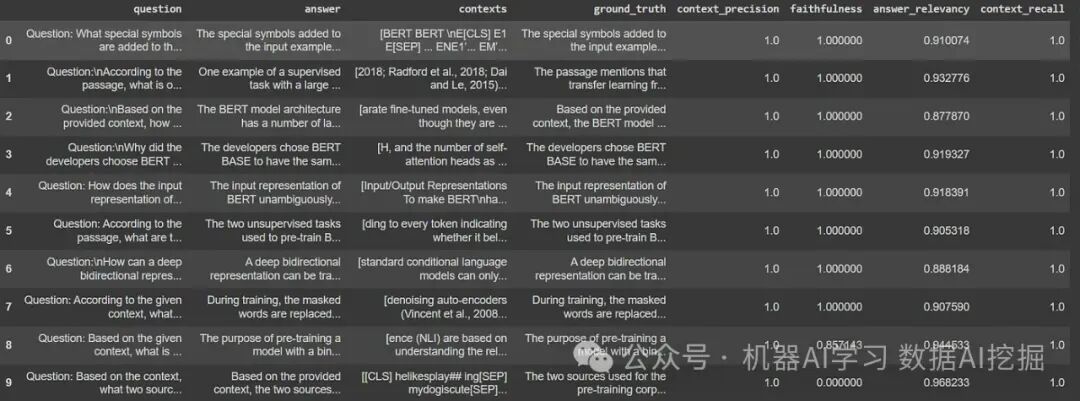

naive_results_df = naive_result.to_pandas()naive_results_df
###############################RESPONSE #######################{'context_precision': 1.0000, 'faithfulness': 0.9500, 'answer_relevancy': 0.9182, 'context_recall': 1.0000}
