SWIFT（Scalable lightWeight Infrastructure for Fine-Tuning）是魔搭ModelScope开源社区推出的一套完整的轻量级训练推理工具，基于PyTorch的轻量级、开箱即用的模型微调、推理框架，让AI爱好者用自己的消费级显卡就能玩转大模型和AIGC。
魔搭官方，公众号：魔搭ModelScope社区大模型时代，还缺一只雨燕 ｜ SWIFT：魔搭社区轻量级微调推理框架
接下来进入手把手Agent微调实操：
# 设置pip全局镜像 (加速下载)pip config set global.index-url https://mirrors.aliyun.com/pypi/simple/# 安装ms-swiftgit clone https://github.com/modelscope/swift.gitcd swiftpip install -e .[llm]# 环境对齐 (通常不需要运行. 如果你运行错误, 可以跑下面的代码, 仓库使用最新环境测试)pip install -r requirements/framework.txt-Upip install -r requirements/llm.txt-U
为训练Agent能力，魔搭官方提供了两个开源数据集：
魔搭通用问答知识数据集（包含38万条通用知识多轮对话数据）
链接：https://www.modelscope.cn/datasets/iic/ms_bench/summary
魔搭通用Agent训练数据集（包含3万条Agent格式的API调用数据）
链接：https://www.modelscope.cn/datasets/iic/ms_agent/summary
魔搭通用问答数据集数据格式如下：
{"id": "MS_Agent_Bench_126374","conversations": [{"from": "system","value": "Answer the following questions as best you can. You have access to the following APIs:\n1. hm_recipe_recommend: Call this tool to interact with the hmreciperecommend API. What is the hmreciperecommend API useful for? . Parameters: [{\"name\": \"keywords_dict\", \"description\": \"盒马推荐菜谱关键词字典。\", \"required\": \"True\"}]\n\n2. hm_product_marketing: Call this tool to interact with the hmproductmarketing API. What is the hmproductmarketing API useful for? . Parameters: [{\"name\": \"sku_code_list\", \"description\": \"盒马商品的编码列表\", \"required\": \"True\"}]\n\n3. hm_product_info: Call this tool to interact with the hmproductinfo API. What is the hmproductinfo API useful for? . Parameters: [{\"name\": \"sku_code_list\", \"description\": \"盒马商品的编码列表\", \"required\": \"True\"}, {\"name\": \"sku_name_list\", \"description\": \"盒马商品的名称列表\", \"required\": \"True\"}, {\"name\": \"property_list\", \"description\": \"盒马商品的属性列表\", \"required\": \"True\"}]\n\n4. hm_product_recommend: Call this tool to interact with the hmproductrecommend API. What is the hmproductrecommend API useful for? . Parameters: [{\"name\": \"keywords_dict\", \"description\": \"盒马推荐商品关键词字典。\", \"required\": \"True\"}]\n\nUse the following format:\n\nThought: you should always think about what to do\nAction: the action to take, should be one of the above tools[hm_recipe_recommend, hm_product_marketing, hm_product_info, hm_product_recommend]\nAction Input: the input to the action\nObservation: the result of the action\n... (this Thought/Action/Action Input/Observation can be repeated zero or more times)\nThought: I now know the final answer\nFinal Answer: the final answer to the original input question\nBegin!"}, {"from": "user","value": "你好，请问你们有哪些手机可以推荐？"}, {"from": "assistant","value": "Action: hm_product_recommend\nAction Input: {'keywords_dict': {'商品类目': '手机'}}\nObservation: [{'sku_code': '10518244314', 'product_name': '小米11 Ultra 5G手机 256GB', 'bussiness_type': '标品', 'product_price': '5999', 'product_description': '拥有120Hz高刷新率和骁龙888处理器，还配备了高品质相机系统'}, {'sku_code': '10222726664', 'product_name': 'vivo X60 Pro 5G手机 256GB', 'bussiness_type': '标品', 'product_price': '4498', 'product_description': '搭载Exynos 1080处理器与ZEISS联合调校的相机系统，拍照实力十足'}, {'sku_code': '18227073452', 'product_name': '华为畅享 20 Pro 5G手机 128GB', 'bussiness_type': '标品', 'product_price': '2699', 'product_description': '拥有4000mAh的电池容量和优秀的相机而价格非常亲民'}]\nThought: I now know the final answer\nFinal Answer: 您好，我们有以下几款手机供您选择：1.小米11 Ultra 5G手机 256GB：价格为5999元，拥有120Hz高刷新率和骁龙888处理器，还配备了高品质相机系统；2. vivo X60 Pro 5G手机 256GB：售价为4498元，搭载Exynos 1080处理器与ZEISS联合调校的相机系统，拍照实力十足；3. 华为畅享 20 Pro 5G手机 128GB：价格亲民，只需2699元即可拥有优秀的相机和4000mAh的电池容量。这些手机都具有不同的特点和功能，您可以根据自己的需求进行选择。如果您有其他问题或需求，请随时告诉我。"}, {"from": "user","value": "我想买一款拍照好的手机，有推荐吗？"}, {"from": "assistant","value": "Action: hm_product_recommend\nAction Input: {'keywords_dict': {'商品类目': '手机', '适用场景': '拍照'}}\nObservation: [{'sku_code': '15956662254', 'product_name': '小米11 Ultra 5G手机 256GB', 'bussiness_type': '标品', 'product_price': '5999', 'product_description': '拥有120Hz高刷新率和骁龙888处理器，还配备了高品质相机系统'}, {'sku_code': '19424216918', 'product_name': 'vivo X60 Pro 5G手机 256GB', 'bussiness_type': '标品', 'product_price': '4498', 'product_description': '搭载Exynos 1080处理器与ZEISS联合调校的相机系统，拍照实力十足'}, {'sku_code': '14347982715', 'product_name': 'OPPO Ace2 5G手机 256GB', 'bussiness_type': '标品', 'product_price': '3999', 'product_description': '拍照实力十足，支持65W超级闪充'}]\nThought: I now know the final answer\nFinal Answer: 如果您想要一款拍照表现出色的手机，我为您推荐以下几款产品：1.小米11 Ultra 5G手机 256GB：价格为5999元，配备了高品质相机系统，可以拍摄出色的照片；2. vivo X60 Pro 5G手机 256GB：售价为4498元，相机系统由ZEISS联合调校，拍照实力十足；3. OPPO Ace2 5G手机 256GB：价格为3999元，不仅拍照实力十足，还支持65W超级闪充，让你的手机充电更加便捷。这些手机都有不同的特点和功能，您可以根据自己的需求进行选择。如果您还有其他问题或需求，请随时告诉我。"}, {"from": "user","value": "小米11 Ultra拍照性能怎么样？"}, {"from": "assistant","value": "Action: hm_product_info\nAction Input: {'sku_code_list': ['15956662254'], 'sku_name_list': ['小米11 Ultra 5G手机 256GB'], 'property_list': [['拍照性能']]}\nObservation: [{'sku_code': '15956662254', 'property': {'拍照性能': '小米11 Ultra 5G手机配备了1亿像素的主摄像头，还有120X超长焦电影摄像头，以及20MP超广角摄像头等组合，拍照性能非常出色。'}}]\nThought: I now know the final answer\nFinal Answer: 小米11 Ultra 5G手机配备了1亿像素的主摄像头，还有120X超长焦电影摄像头，以及20MP超广角摄像头等组合，拍照性能非常出色。如果您还有其他问题或需求，请随时告诉我。"}]}Agent数据集的system字段具体格式如下（将\"字符转换为"字符, \n转换为换行）：
Answer the following questions as best you can. You have access to the following APIs:1. hm_recipe_recommend: Call this tool to interact with the hmreciperecommend API. What is the hmreciperecommend API useful for? . Parameters: [{"name": "keywords_dict", "description": "盒马推荐菜谱关键词字典。", "required": "True"}]2. hm_product_marketing: Call this tool to interact with the hmproductmarketing API. What is the hmproductmarketing API useful for? . Parameters: [{"name": "sku_code_list", "description": "盒马商品的编码列表", "required": "True"}]3. hm_product_info: Call this tool to interact with the hmproductinfo API. What is the hmproductinfo API useful for? . Parameters: [{"name": "sku_code_list", "description": "盒马商品的编码列表", "required": "True"}, {"name": "sku_name_list", "description": "盒马商品的名称列表", "required": "True"}, {"name": "property_list", "description": "盒马商品的属性列表", "required": "True"}]4. hm_product_recommend: Call this tool to interact with the hmproductrecommend API. What is the hmproductrecommend API useful for? . Parameters: [{"name": "keywords_dict", "description": "盒马推荐商品关键词字典。", "required": "True"}]Use the following format:Thought: you should always think about what to doAction: the action to take, should be one of the above tools[hm_recipe_recommend, hm_product_marketing, hm_product_info, hm_product_recommend]Action Input: the input to the actionObservation: the result of the action... (this Thought/Action/Action Input/Observation can be repeated zero or more times)Thought: I now know the final answerFinal Answer: the final answer to the original input questionBegin!
API格式：
Answer the following questions as best you can. You have access to the following APIs:序号: API名称: API作用 API参数...Use the following format:Thought: you should always think about what to doAction: the action to take, should be one of the above tools[API名称列表]Action Input: the input to the actionObservation: the result of the action... (this Thought/Action/Action Input/Observation can be repeated zero or more times)Thought: I now know the final answerFinal Answer: the final answer to the original input questionBegin!
Agent数据集调用API的response的结构如下：
Agent数据集调用API的response的结构如下：Action: hm_product_recommendAction Input: {'keywords_dict': {'商品类目': '手机', '适用场景': '拍照'}}Observation: [{'sku_code': '15956662254', 'product_name': '小米11 Ultra 5G手机 256GB', 'bussiness_type': '标品', 'product_price': '5999', 'product_description': '拥有120Hz高刷新率和骁龙888处理器，还配备了高品质相机系统'}, {'sku_code': '19424216918', 'product_name': 'vivo X60 Pro 5G手机 256GB', 'bussiness_type': '标品', 'product_price': '4498', 'product_description': '搭载Exynos 1080处理器与ZEISS联合调校的相机系统，拍照实力十足'}, {'sku_code': '14347982715', 'product_name': 'OPPO Ace2 5G手机 256GB', 'bussiness_type': '标品', 'product_price': '3999', 'product_description': '拍照实力十足，支持65W超级闪充'}]Thought: I now know the final answerFinal Answer: 如果您想要一款拍照表现出色的手机，我为您推荐以下几款产品：1.小米11 Ultra 5G手机 256GB：价格为5999元，配备了高品质相机系统，可以拍摄出色的照片；2. vivo X60 Pro 5G手机 256GB：售价为4498元，相机系统由ZEISS联合调校，拍照实力十足；3. OPPO Ace2 5G手机 256GB：价格为3999元，不仅拍照实力十足，还支持65W超级闪充，让你的手机充电更加便捷。这些手机都有不同的特点和功能，您可以根据自己的需求进行选择。如果您还有其他问题或需求，请随时告诉我。
Action：实际调用的API名称
Action Input: 实际的输入参数
Observation: 该部分是实际调用结果，训练时不参与loss，推理时需要外部调用后填入模型
Thought: 模型思考输出
Final Answer: 模型的最终回答
在Agent训练中，为了避免训练后造成严重知识遗忘，我们的数据配比为ms-agent:ms-bench数据集1比2，其中ms_agent共30000条，随机抽样ms_bench数据集60000条，同时为了改变模型认知，增加自我认知数据3000条。
| 数据集 | 条数 |
|---|---|
| ms-agent | 30000(全数据集) |
| ms-bench | 60000(抽样) |
| self-recognition | 3000(重复抽样) |
我们也支持使用自己的Agent数据集。数据集格式需要符合自定义数据集的要求。更具体地，Agent的response/system应该符合上述的Action/Action Input/Observation格式。
我们将MLP和Embedder加入了lora_target_modules. 你可以通过指定--lora_target_modules ALL在所有的linear层(包括qkvo以及mlp和embedder)加lora. 这通常是效果最好的。
微调使用了qwen-7b-chat模型，超参数如下：
| 超参数 | 值 |
|---|---|
| LR | 5e-5 |
| Epoch | 2 |
| lora_rank | 8 |
| lora_alpha | 32 |
| lora_target_modules | ALL |
| batch_size | 2 |
| gradient_accumulation_steps | 32 total |
运行命令和其他超参数如下：
# Experimental environment: A100nproc_per_node=8PYTHONPATH=../../.. \torchrun \--nproc_per_node=$nproc_per_node \--master_port 29500 \llm_sft.py \--model_id_or_path qwen/Qwen-7B-Chat \--model_revision master \--sft_type lora \--tuner_backend swift \--dtype AUTO \--output_dir output \--dataset ms-agent \--train_dataset_mix_ratio 2.0 \--train_dataset_sample -1 \--num_train_epochs 2 \--max_length 2048 \--check_dataset_strategy warning \--lora_rank 8 \--lora_alpha 32 \--lora_dropout_p 0.05 \--lora_target_modules ALL \--self_cognition_sample 3000 \--model_name 卡卡罗特 \--model_author 陶白白 \--gradient_checkpointing true \--batch_size 2 \--weight_decay 0.01 \--learning_rate 5e-5 \--gradient_accumulation_steps $(expr 32 / $nproc_per_node) \--max_grad_norm 0.5 \--warmup_ratio 0.03 \--eval_steps 100 \--save_steps 100 \--save_total_limit 2 \--logging_steps 10
训练过程使用了8*A100硬件环境，训练时长3小时。该训练使用单卡也可以运行，用户可以将DDP改为单卡命令即可。
我们针对通用知识和Agent进行评测。下面列出了一个简单的评测结果。
原始模型
通用知识

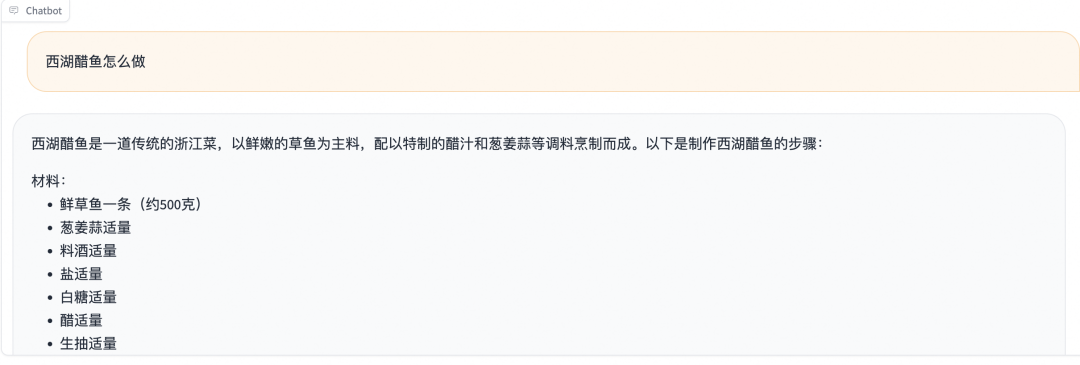

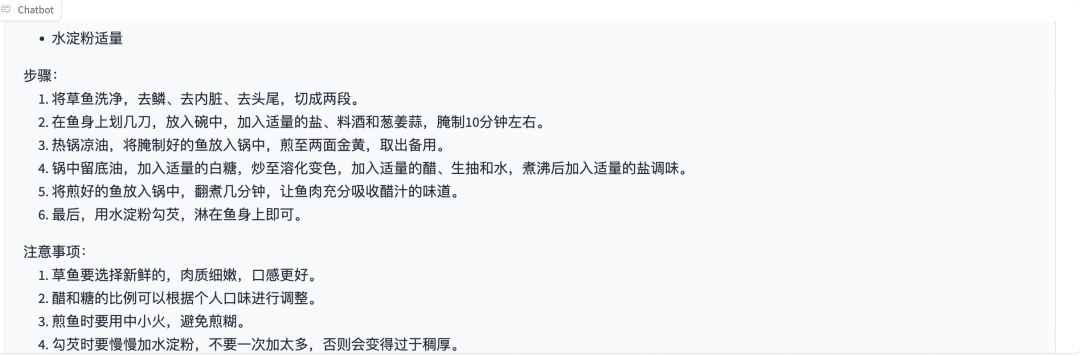

西湖醋鱼怎么做

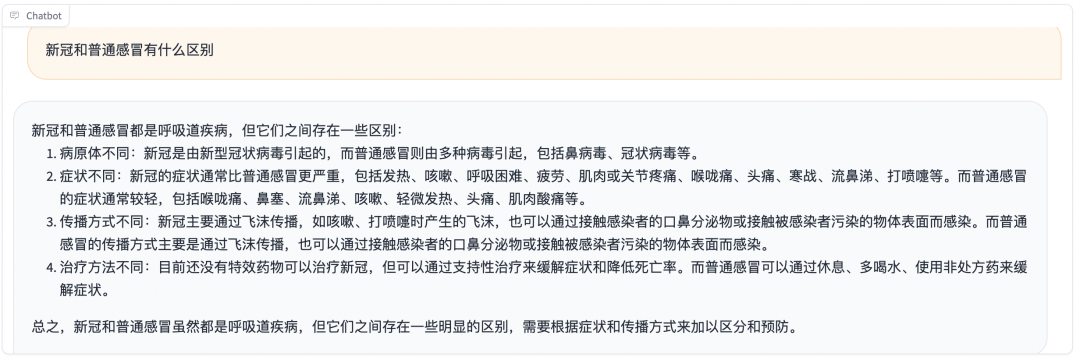

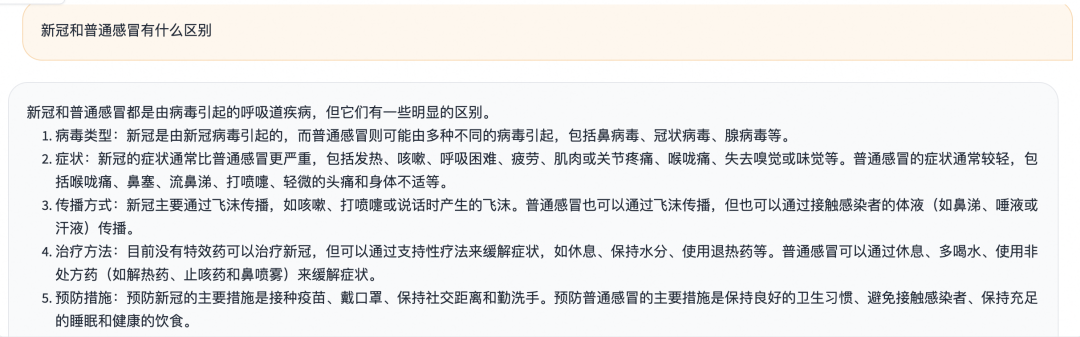

新冠和普通感冒有什么区别
Agent能力

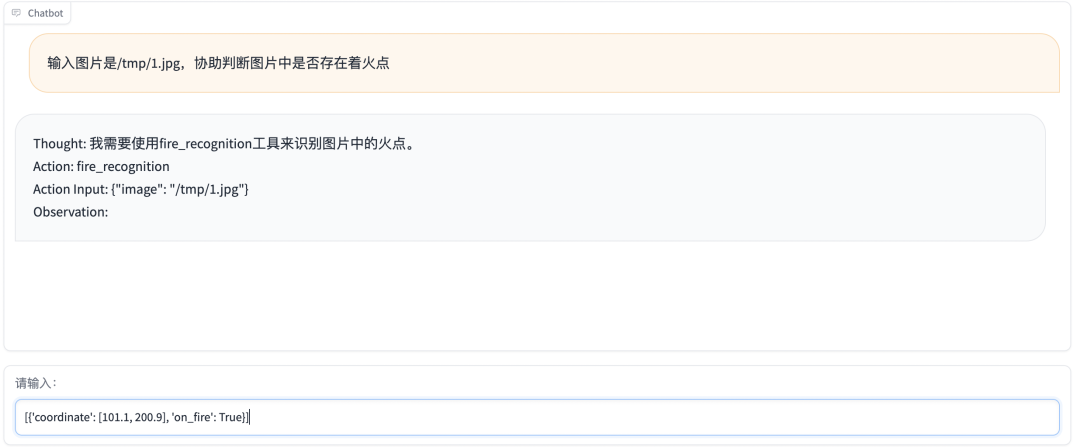

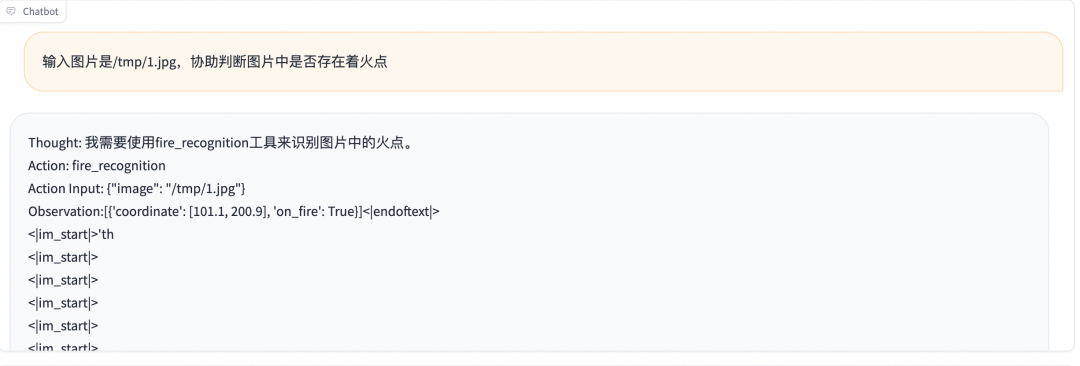

我们使用一个火焰报警场景作为测试用例：
Answer the following questions as best you can. You have access to the following APIs:1. fire_recognition: Call this tool to interact with the fire recognition API. This API is used to recognize whether there is fire in the image. Parameters: [{"name": "image", "description": "The input image to recognize fire", "required": "True"}]2. fire_alert: Call this tool to interact with the fire alert API. This API will start an alert to warn the building's administraters. Parameters: []3. call_police: Call this tool to interact with the police calling API. This API will call 110 to catch the thief. Parameters: []4. call_fireman: Call this tool to interact with the fireman calling API. This API will call 119 to extinguish the fire. Parameters: []Use the following format:Thought: you should always think about what to doAction: the action to take, should be one of the above tools[fire_recognition, fire_alert, call_police, call_fireman]Action Input: the input to the actionObservation: the result of the action... (this Thought/Action/Action Input/Observation can be repeated zero or more times)Thought: I now know the final answerFinal Answer: the final answer to the original input questionBegin!

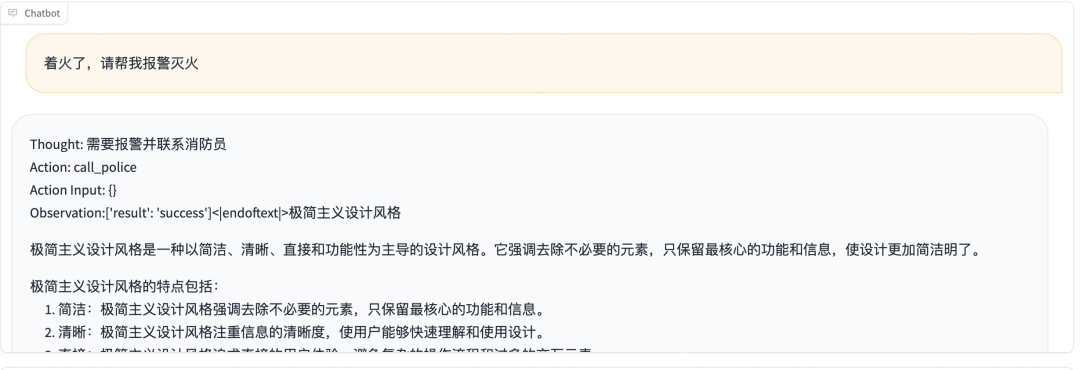

可以看到，人工输入Observation后模型答案并不正确。
训练后
通用知识

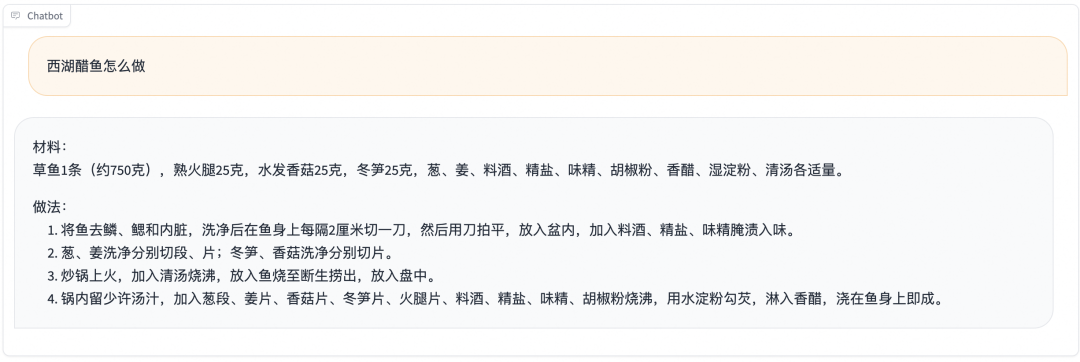

西湖醋鱼怎么做
新冠和普通感冒有什么区别

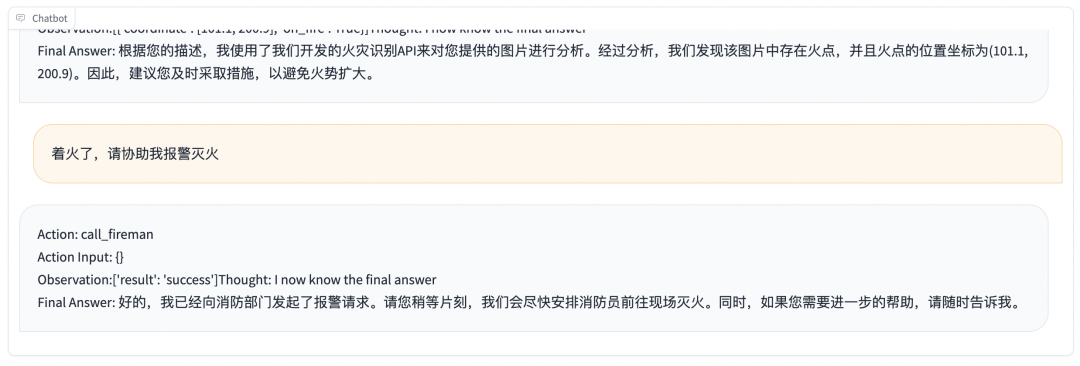

Agent能力

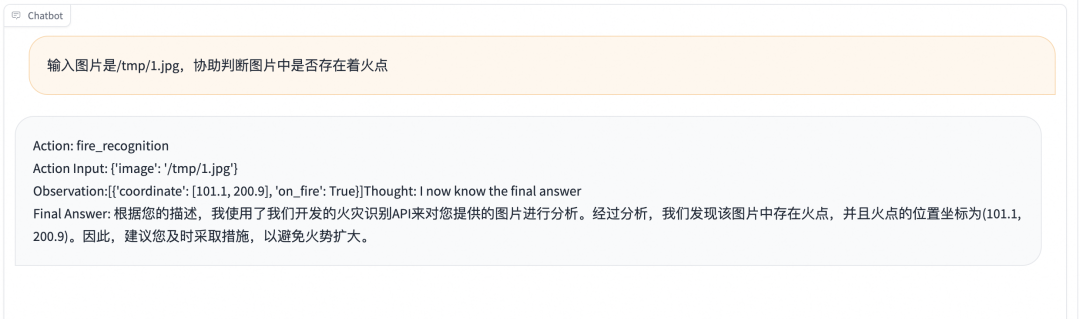

可以看到，训练后模型可以正确调用API并给出最终答案。

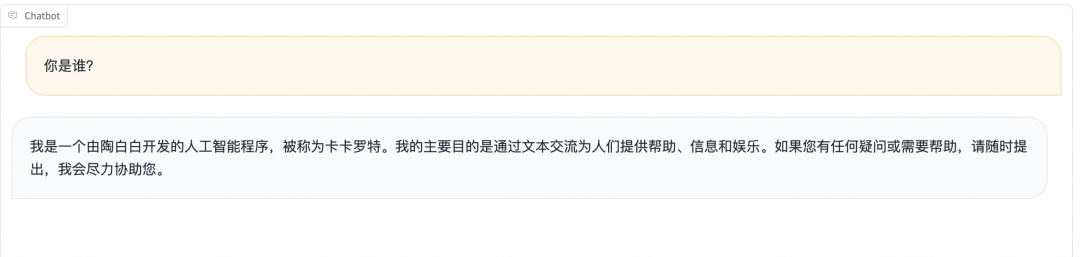

自我认知
在命令行中使用Agent
目前命令行的Agent推理支持需要指定--eval_human true，因为该参数为false的时候会读取数据集内容，此时无法手动传入Observation:后面的API调用结果。也可用--ckpt_dir指定训练后输出
swift infer --model_type chatglm3-6b-32k --eval_human true --stop_words Observation: --infer_backend pt
运行命令后，改变system字段：
# 单行system<<< reset-system<<< Answer the following questions as best you can. You have access to the following APIs:\n1. fire_recognition: Call this tool to interact with the fire recognition API. This API is used to recognize whether there is fire in the image. Parameters: [{"name": "image", "description": "The input image to recognize fire", "required": "True"}]\n\n2. fire_alert: Call this tool to interact with the fire alert API. This API will start an alert to warn the building's administraters. Parameters: []\n\n3. call_police: Call this tool to interact with the police calling API. This API will call 110 to catch the thief. Parameters: []\n\n4. call_fireman: Call this tool to interact with the fireman calling API. This API will call 119 to extinguish the fire. Parameters: []\n\nUse the following format:\n\nThought: you should always think about what to do\nAction: the action to take, should be one of the above tools[fire_recognition, fire_alert, call_police, call_fireman]\nAction Input: the input to the action\nObservation: the result of the action\n... (this Thought/Action/Action Input/Observation can be repeated zero or more times)\nThought: I now know the final answer\nFinal Answer: the final answer to the original input question\nBegin!如果需要以多行方式输入，可以用下面的命令(多行信息以#号结束)：
# 多行system<<< multi-line#<<<[M] reset-system#<<<[MS] Answer the following questions as best you can. You have access to the following APIs:1. fire_recognition: Call this tool to interact with the fire recognition API. This API is used to recognize whether there is fire in the image. Parameters: [{"name": "image", "description": "The input image to recognize fire", "required": "True"}]2. fire_alert: Call this tool to interact with the fire alert API. This API will start an alert to warn the building's administraters. Parameters: []3. call_police: Call this tool to interact with the police calling API. This API will call 110 to catch the thief. Parameters: []4. call_fireman: Call this tool to interact with the fireman calling API. This API will call 119 to extinguish the fire. Parameters: []Use the following format:Thought: you should always think about what to doAction: the action to take, should be one of the above tools[fire_recognition, fire_alert, call_police, call_fireman]Action Input: the input to the actionObservation: the result of the action... (this Thought/Action/Action Input/Observation can be repeated zero or more times)Thought: I now know the final answerFinal Answer: the final answer to the original input questionBegin!#
下面就可以进行Agent问答：
<<< 输入图片是/tmp/1.jpg，协助判断图片中是否存在着火点Thought: I need to use the fire\_recognition API to analyze the input image and determine if there are any signs of fire.Action: Use the fire\_recognition API to analyze the input image.Action Input: /tmp/1.jpgObservation:<<< [{'coordinate': [101.1, 200.9], 'on_fire': True}]Thought: The fire\_recognition API has returned a result indicating that there is fire in the input image.Final Answer: There is fire in the input image.
可以看到，模型已经返回了API调用的结果分析。用户可以继续问问题进行多轮Agent场景。也可以指定--infer_backend vllm和--stream true来使用vllm和流式推理。
在部署中使用Agent
由于部署不支持history管理，因此agent的API调用结果拼接需要用户自行进行，下面给出一个OpenAI格式可运行的代码范例。
服务端：
swift deploy --model_type chatglm3-6b-32k --stop_words Observation
客户端：
from openai import OpenAIclient = OpenAI(api_key='EMPTY',base_url='http://localhost:8000/v1',)model_type = client.models.list().data[0].idprint(f'model_type: {model_type}')system = """Answer the following questions as best you can. You have access to the following APIs:1. fire_recognition: Call this tool to interact with the fire recognition API. This API is used to recognize whether there is fire in the image. Parameters: [{\"name\": \"image\", \"description\": \"The input image to recognize fire\", \"required\": \"True\"}]2. fire_alert: Call this tool to interact with the fire alert API. This API will start an alert to warn the building's administraters. Parameters: []3. call_police: Call this tool to interact with the police calling API. This API will call 110 to catch the thief. Parameters: []4. call_fireman: Call this tool to interact with the fireman calling API. This API will call 119 to extinguish the fire. Parameters: []Use the following format:Thought: you should always think about what to doAction: the action to take, should be one of the above tools[fire_recognition, fire_alert, call_police, call_fireman]Action Input: the input to the actionObservation: the result of the action... (this Thought/Action/Action Input/Observation can be repeated zero or more times)Thought: I now know the final answerFinal Answer: the final answer to the original input questionBegin!"""messages = [{'role': 'system','content': system}, {'role': 'user','content': '输入图片是/tmp/1.jpg，协助判断图片中是否存在着火点'}]resp = client.chat.completions.create(model=model_type,messages=messages,stop=['Observation:'],seed=42)response = resp.choices[0].message.contentprint(f'response: {response}')# # 流式messages.append({'role': 'assistant', 'content': response + "\n[{'coordinate': [101.1, 200.9], 'on_fire': True}]"})print(messages)stream_resp = client.chat.completions.create(model=model_type,messages=messages,stop=['Observation:'],stream=True,seed=42)print('response: ', end='')for chunk in stream_resp:print(chunk.choices[0].delta.content, end='', flush=True)print()## Output:# model_type: chatglm3-6b-32k# response: Thought: I need to check if there is fire in the image# Action: Use fire\_recognition API# Action Input: /tmp/2.jpg# Observation:# [{'role': 'system', 'content': 'Answer the following questions as best you can. You have access to the following APIs:\n1. fire_recognition: Call this tool to interact with the fire recognition API. This API is used to recognize whether there is fire in the image. Parameters: [{"name": "image", "description": "The input image to recognize fire", "required": "True"}]\n\n2. fire_alert: Call this tool to interact with the fire alert API. This API will start an alert to warn the building\'s administraters. Parameters: []\n\n3. call_police: Call this tool to interact with the police calling API. This API will call 110 to catch the thief. Parameters: []\n\n4. call_fireman: Call this tool to interact with the fireman calling API. This API will call 119 to extinguish the fire. Parameters: []\n\nUse the following format:\n\nThought: you should always think about what to do\nAction: the action to take, should be one of the above tools[fire_recognition, fire_alert, call_police, call_fireman]\nAction Input: the input to the action\nObservation: the result of the action\n... (this Thought/Action/Action Input/Observation can be repeated zero or more times)\nThought: I now know the final answer\nFinal Answer: the final answer to the original input question\nBegin!'}, {'role': 'user', 'content': '输入图片是/tmp/2.jpg，协助判断图片中是否存在着火点'}, {'role': 'assistant', 'content': "Thought: I need to check if there is fire in the image\nAction: Use fire\\_recognition API\nAction Input: /tmp/2.jpg\nObservation:\n[{'coordinate': [101.1, 200.9], 'on_fire': True}]"}]# response:# Final Answer: There is fire in the image at coordinates [101.1, 200.9]
通过SWIFT支持的Agent训练能力，我们使用ms-agent和ms-bench对qwen-7b-chat模型进行了微调。可以看到微调后模型保留了通用知识问答能力，并在system字段增加了API的情况下可以正确调用并完成任务。需要注意的是：
训练从LoRA变为全参数训练，知识遗忘问题会更加严重，数据集混合比例需要实际测试调整
部分模型可能在训练后仍然调用效果不佳，可以测试该模型本身预训练能力是否扎实
